直流静音无油中压空压机 BST1500/12DC 60V.72V空压机

直流静音无油中压空压机 BST1500/12DC 60V.72V空压机

[caption id="attachment_1940" align="aligncenter" width="600"] 直流静音无油中压空压机[/caption] Model BST1500/12DC Voltage/frequency??V/Hz DC60V?DC72V?And?above Input?power??W ≤1500 Speed????r/min ≥1800 Rated?working?pressure??MPa 1.1 maximum?pressure??MPa 1.2 Rstartup?pressure???MPa 0 Rated?volume?flow??L/min 80 Noise?dB(A) ≤78dB(A) Ambient?temperature?℃ -5~40?℃ Insulation?Class B Cold?insulation?resistance?MΩ ≥100MΩ Withstand?volta...

详细介绍

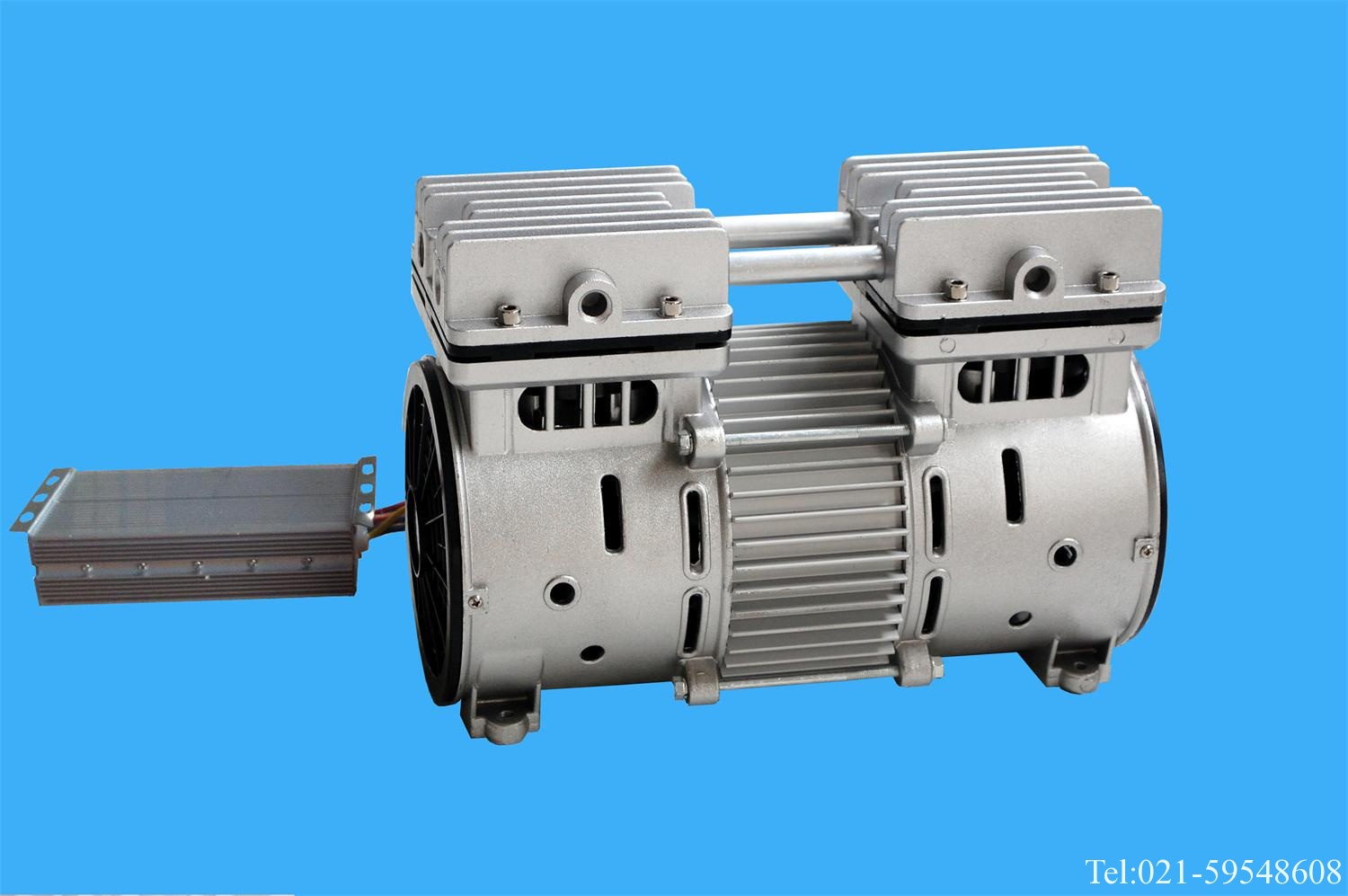

dc750

直流静音无油中压空压机

Model BST1500/12DC
Voltage/frequency??V/Hz DC60V?DC72V?And?above
Input?power??W ≤1500
Speed????r/min ≥1800
Rated?working?pressure??MPa 1.1
maximum?pressure??MPa 1.2
Rstartup?pressure???MPa 0
Rated?volume?flow??L/min 80
Noise?dB(A) ≤78dB(A)
Ambient?temperature?℃ -5~40?℃
Insulation?Class B
Cold?insulation?resistance?MΩ ≥100MΩ
Withstand?voltage?strength 500V/50Hz?1min?No?breakdown
Net?weight?Kg 10.5Kg
Installation?dimension?mm 223.2×88.9?mm(4XM6)
External?dimensions?mm 268.8×128×212.7?mm
intake?/?exhaust?dimensions G1/2?Of?Accept?customization
