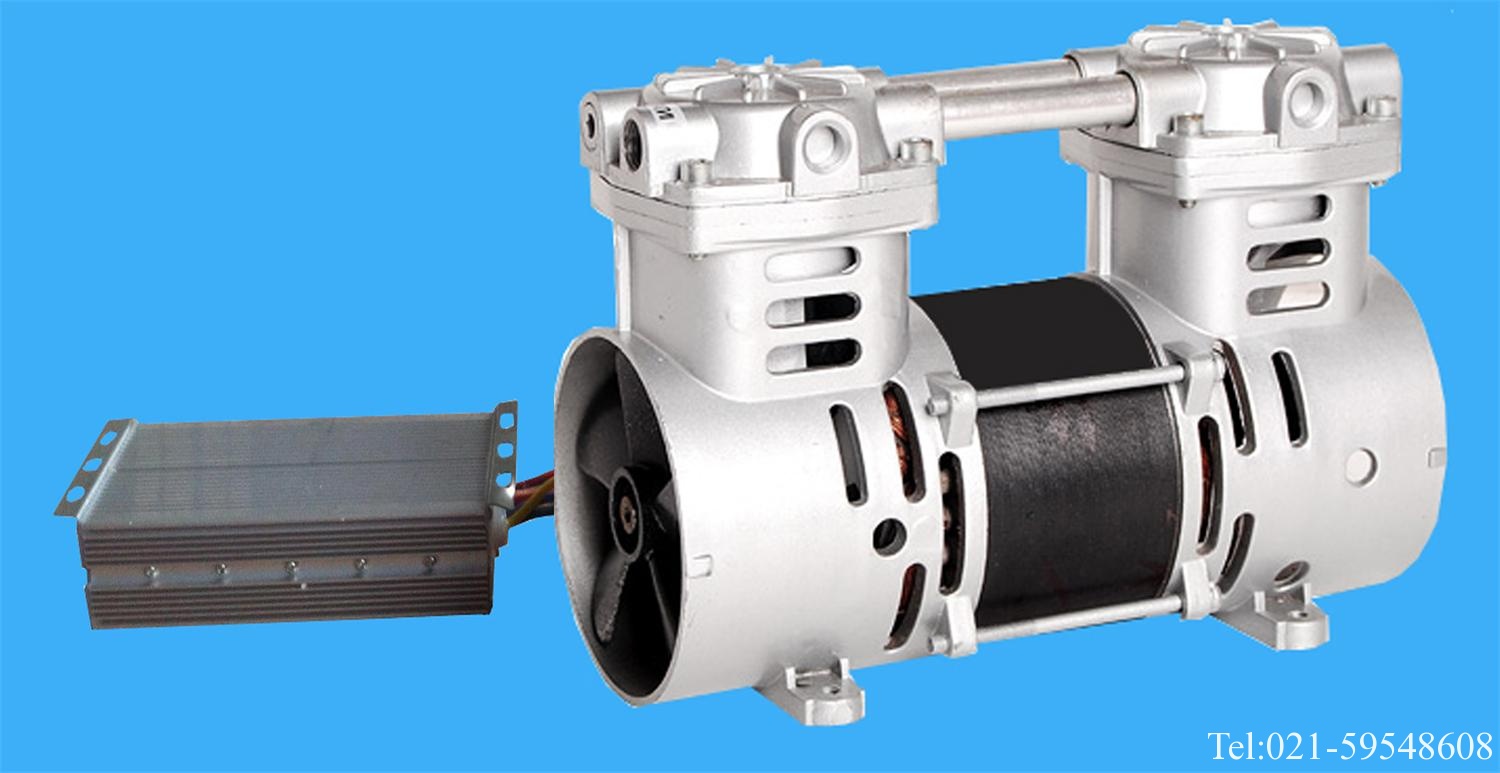

小型直流中压无油空压机 BST550/12DC24V.36V空压机
小型直流中压无油空压机
| Model |
BST550/12DC |
| Voltage/frequency??V/Hz |
DC24V?、36V??And?above |
| Input?power??W |
≤550 |
| Speed????r/min |
≥1800 |
| Rated?working?pressure??MPa |
1.1 |
| maximum?pressure??MPa |
1.2 |
| Rstartup?pressure???MPa |
0 |
| Rated?volume?flow??L/min |
20?L/min |
| Noise?dB(A) |
≤70dB(A) |
| Ambient?temperature?℃ |
-5～40?℃ |
| Insulation?Class |
B |
| Cold?insulation?resistance?MΩ |
≥100MΩ |
| Withstand?voltage?strength |
500V/50Hz?1min?No?breakdown |
| Net?weight?Kg |
6.0Kg |
| Installation?dimension?mm |
83×147?mm??4*M6 |
| External?dimensions?mm |
234×103×165?mm |
| intake?/?exhaust?dimensions |
G1/4?Of?Accept?customization |
